Omron Sysmac Studio / SQL4Omron

Requirements

This target requires at least CPU version 1.18.

The fbSql4Omron function block uses the following standard functions:

• SktTCPConnect

• SktClose

• SktGetTCPStatus

• SktClearBuf

The sample project cannot be tested in simulation mode as this does not allow any communication functions. The library was developed and tested with an NX1P2.

Library

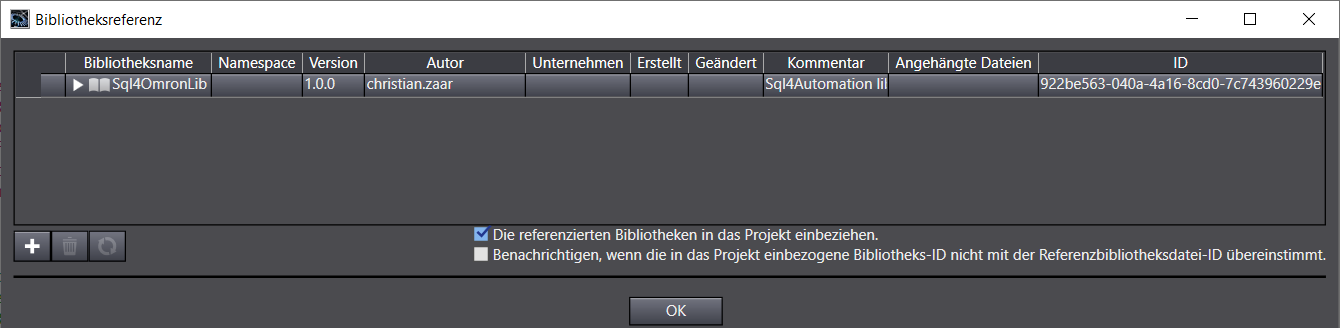

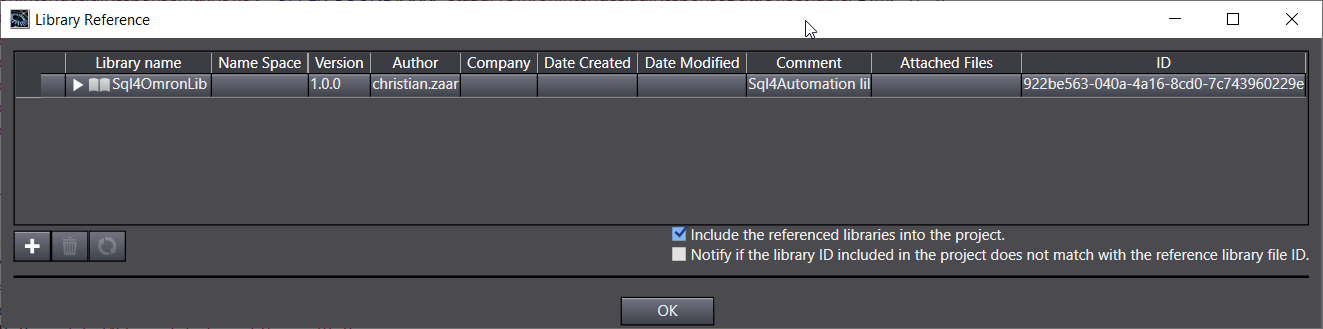

The "Sql4OmronLib.slr" library can be referenced in an existing project.

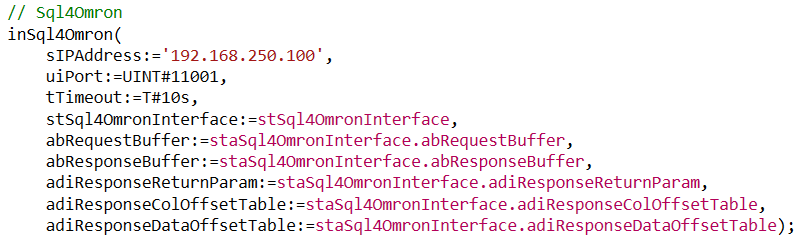

Instance call

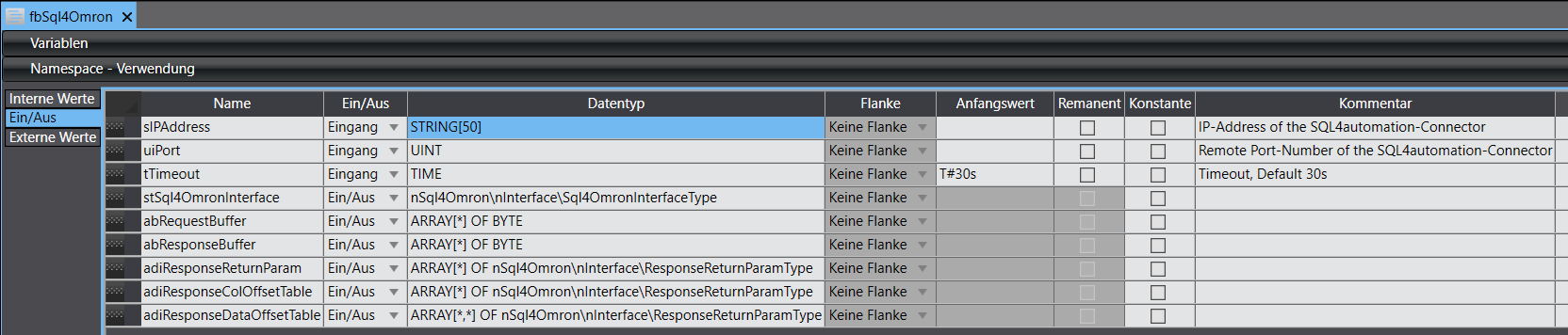

Parameter of fbSql4Omron

Description of the interface signals:

sIPAddress Input STRING[50] // IP address of the SQL4automation connector

iPort Input UINT // Set port number of the SQL4automation connector

tTimeout Input TIME // Timeout

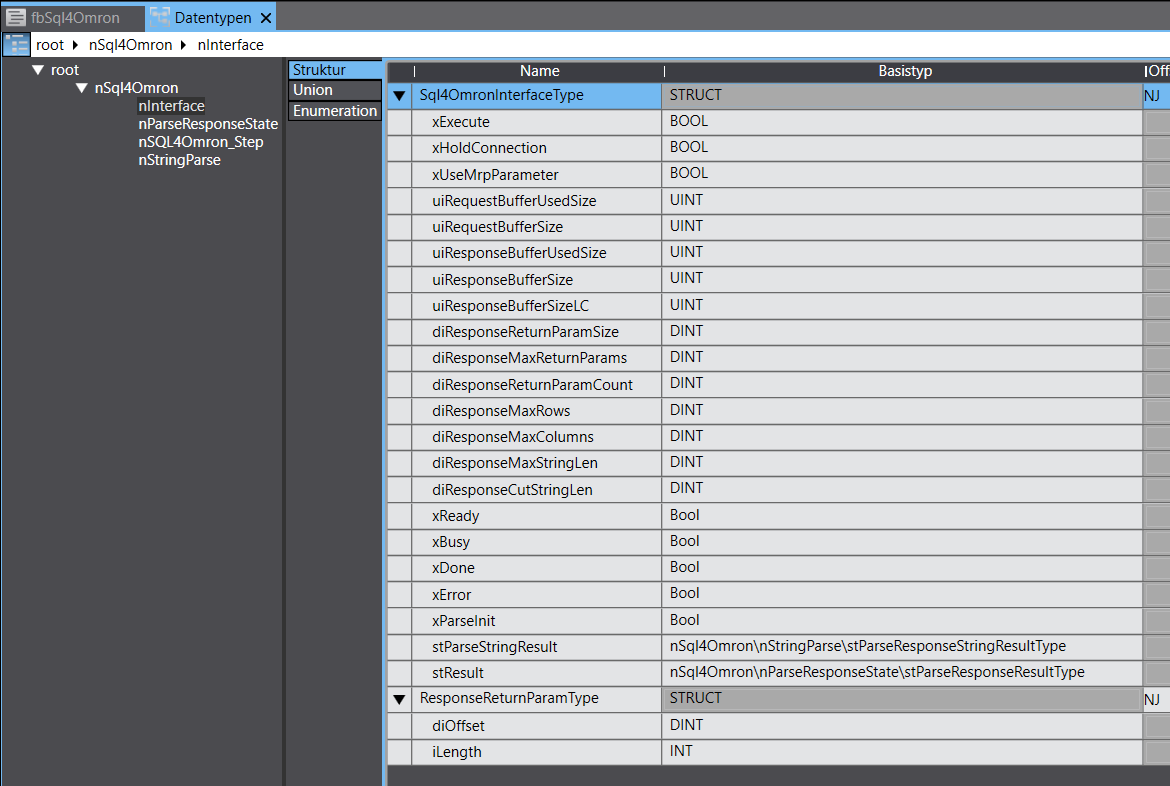

stSql4OmronInterface In/Out Sql4OmronInterfaceType // Interface Struct

xExecute Input BOOL // Start database query

xHoldConnection Input BOOL // Keeps the socket connection open after a database query

uiRequestBufferUsedSize Output UINT // Size of the used request data buffer

uiRequestBufferSize Input UINT // Size of the request data buffer

dwResponseBufferUsedSize Output UINT // Size of the used response data buffer

dwResponseBufferSize Input UINT // Size of the response data buffer

diResponseMaxReturnParams Input UINT // Maximum number of return parameters

(Connector-Version >= 4.0, otherwise 0)

diResponseMaxRows Input UINT // Maximum number of rows of the DB query response

diResponseMaxColumns Input UINT // Maximum number of columns of the DB query response diResponseMaxStringLen Input UINT // Maximum string length of the DB query response

diResponseCutStringLen Input UINT // Strings in the response are shortened to the corresponding length (0=inactive)

xReady Output BOOL // Ready for a database query

xBusy Output BOOL // Database query running

xDone Output BOOL // Database query completed

xError Output BOOL // Database query ended with an error

**

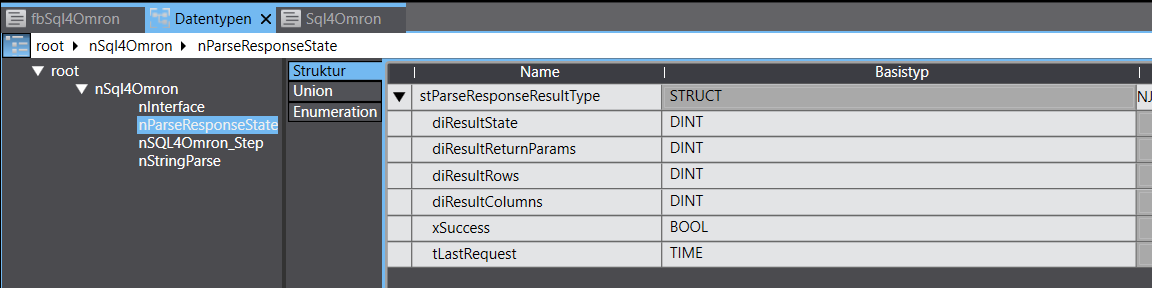

stResult Output stParseResponseResultType // Interface Struct

diResultState Output DINT // Status database query / error number

diResultReturnParams Output DINT // No. of return & output parameters received from the DB query

diResultRows Output DINT // No. of rows received from the DB query

diResultColumns Output DINT // No. of columns received from the DB query

Error codes

The variable "diResultState" describes the error.

Fehler-Nummer	Fehler-Beschreibung
1	Unknown SQL command
2	Query results have more data records than defined in diResponseMaxRows, adjust query or increase diResponseMaxRows
3	Query results have more columns than defined in diResponseMaxColumns, adjust query or increase diResponseMaxColumns
5	Query returns at least one value that is greater than defined in diResponseMaxStringLen, adjust query or increase diResponseMaxStringLen
10	Internal connector error
11	Internal connector error, database cannot be opened
21	No IP address defined / sIPAddress =''
22	No port number defined / iPort =0
23	Request string is empty
24	Number of MaxRows not defined / diResponseMaxRows =0
25	Number of MaxColumns not defined / diResponseMaxColumns =0
41	No connection to the SQL4automation connector established. Switch off the firewall.
51	The request string is larger than the send buffer
95	Error when receiving the data
99	Timeout
>100	Error numbers of the ODBC database connection. Syntax error in SQL query.

The sample project

A fully executable project was created as a sample project.

The sample project was created and tested for an NX1P2 9024DT1 v1.60. However, the sample project can be easily adapted to other controller types by changing the controller.

The sample project is called:

Sql4OmronExampleProject.smc2

Note:

When executing the database query, the test license of the connector must be activated using the "S4A Config" tool and a link (with port number e.g. 11001) to the test database "S4A_Test_DB.mdb" or "SQLite_Test_DB.db" from the "Sample_Database" directory must be configured.

If a stored procedure is to be executed, an MS SQL Server database must be available. The table including data and stored procedure can be created with the SQL scripts "MS_SQL_TestDB.sql" and "spExampleGetReturnAndOutputParam.sql".

How to configure the connection to the test database is described in 4.1.2.

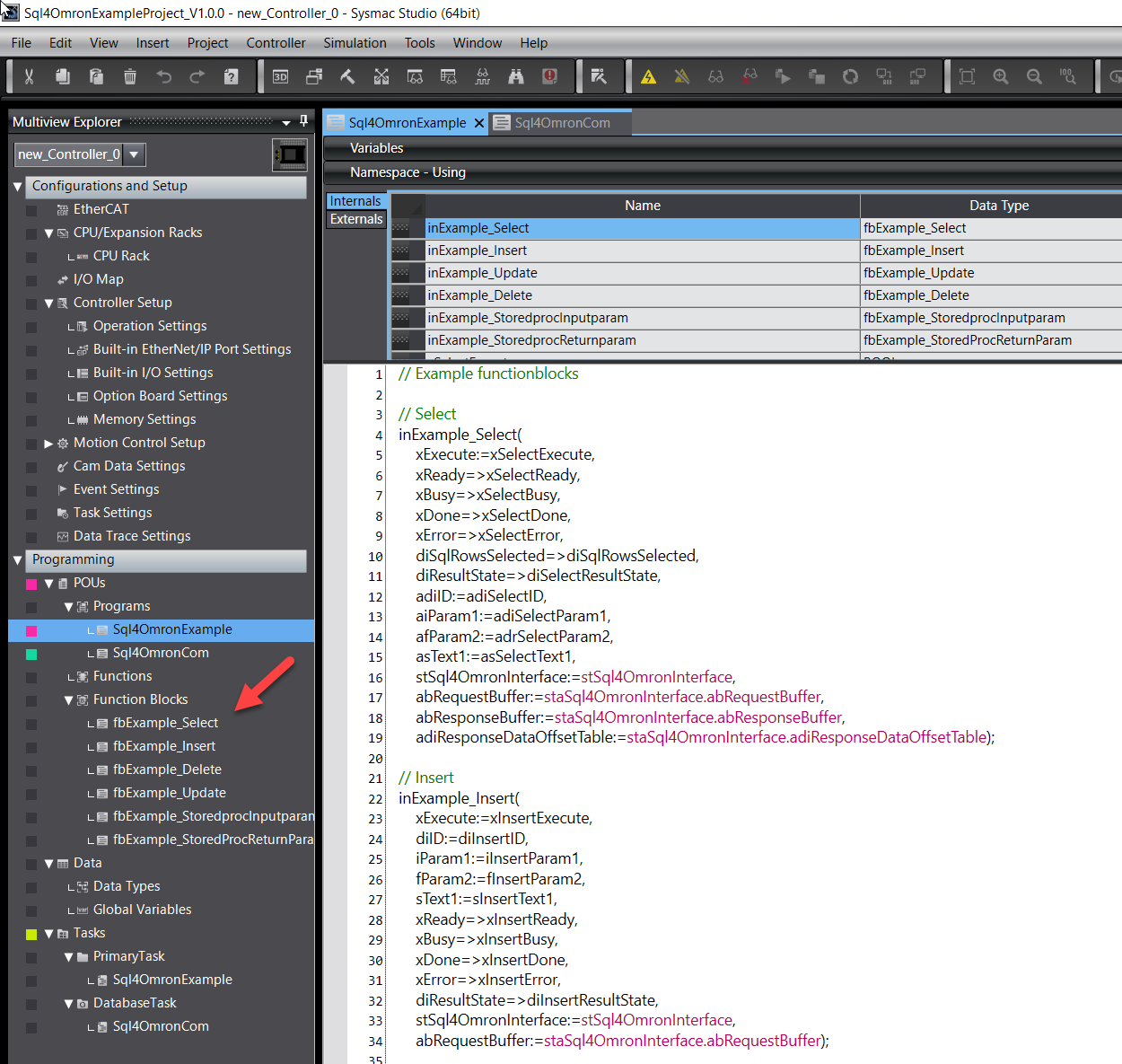

There are examples of a SELECT, INSERT, DELETE, UPDATE and two EXECUTE (stored procedure) queries:

fbExample_Select, fbExample_Insert, fbExample_Delete, fbExample_Update, fbExample_StoredprocInputparam, fbExample_StoredProcReturnParam

For communication with SQL4automation, it requires the Sql4Omron.Lib.

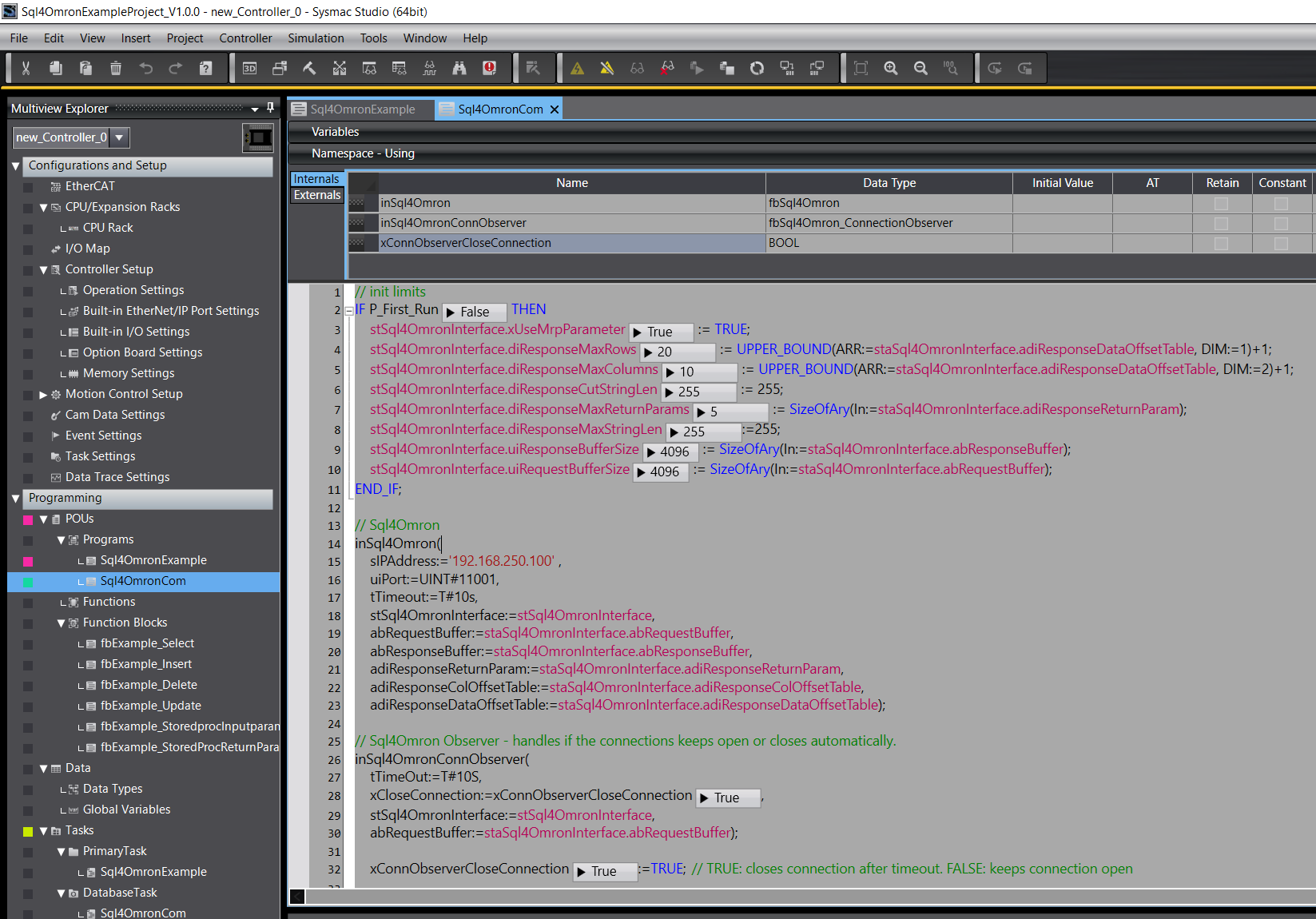

The instance must be called cyclically and should be called in a separate task.

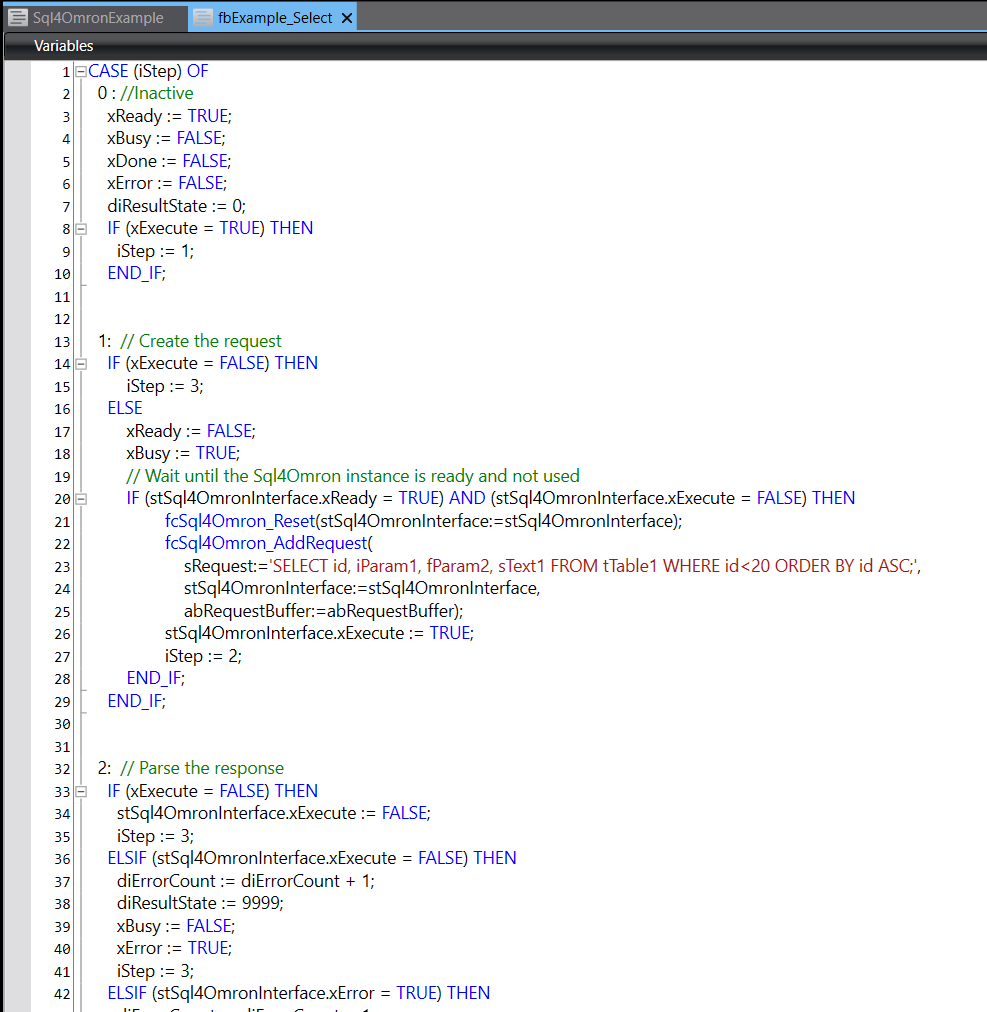

A step chain is programmed in the respective subroutine. The SQL command is also assembled there. The SQL command is transferred to the function block as a STRING. Therefore, INTEGER or REAL variables, for example, must be converted into STRING variables if they are to be included in the SQL command.

There are special functions that can be used for this conversion: INT_TO_STRING, DINT_TO_STRING, RealToFormatString.

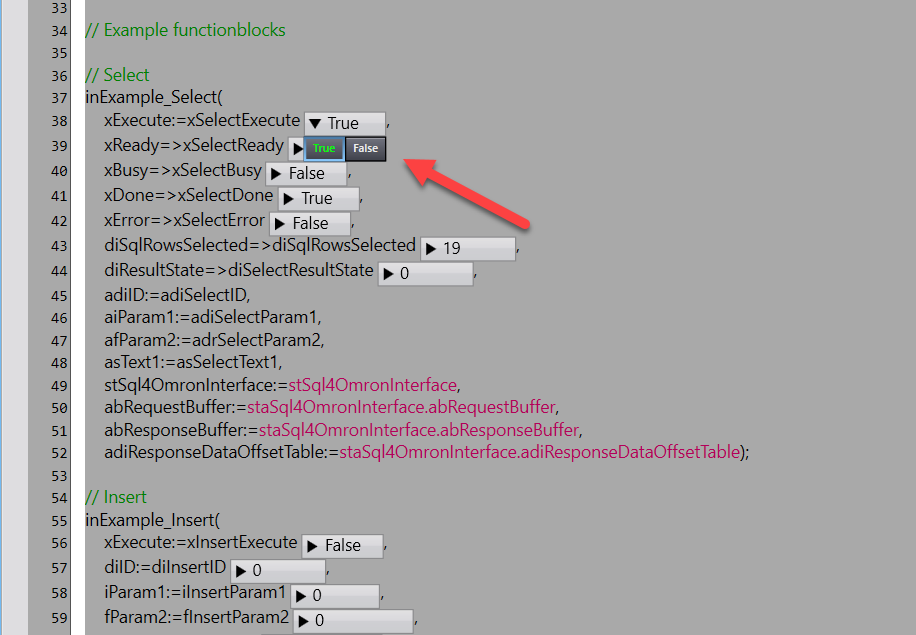

By setting the variable xSelectExecute to "True", a SELECT database query can be started. Afterwards, xSelectExecute must be set to "False" again.

If the query is successful, xSelectDone will become "True" and the data has been successfully read.

All queries are logged in the "S4A Debugger" tool.
