Allen Bradley / Rockwell / SQL4RSLogix

Requirements

The Add-On “SQL4automation” uses an Ethernet/IP socket connection to the Connector. For this reason, the control system must support Ethernet/IP sockets. The following Ethernet communication modules support Ethernet/IP sockets: 1756-EWEB, 1756-EN2Txx, 1768-EWEB (CompactLogix). Also, control systems can be used which feature an integrated Ethernet/IP interface on the CPU.

The sample projects are devised for the controller 1756-L63 ControlLogix5563, and for a 1769-L18ER-BB1B CompactLogix5318ERM-BB1B. However, these sample projects can be easily adapted to other controller types by simply changing the controller. For a ControlLogix, use the ControlLogix example, for a CompactLogix, use the CompactLogix example.

If you already have an existing project, you can carry out the steps described in the following sections. Otherwise, you can immediately open the finished project “8.15.9 Sample Project”.

Importing Add-On and Tags

The Add-On “SQL4automation” can be imported using the import function “Import Add-On Instruction…” (right mouse button: Controller Organizer - Add-On Instructions) (AddOn_SQL4automation_v3.x.x.x.L5X).

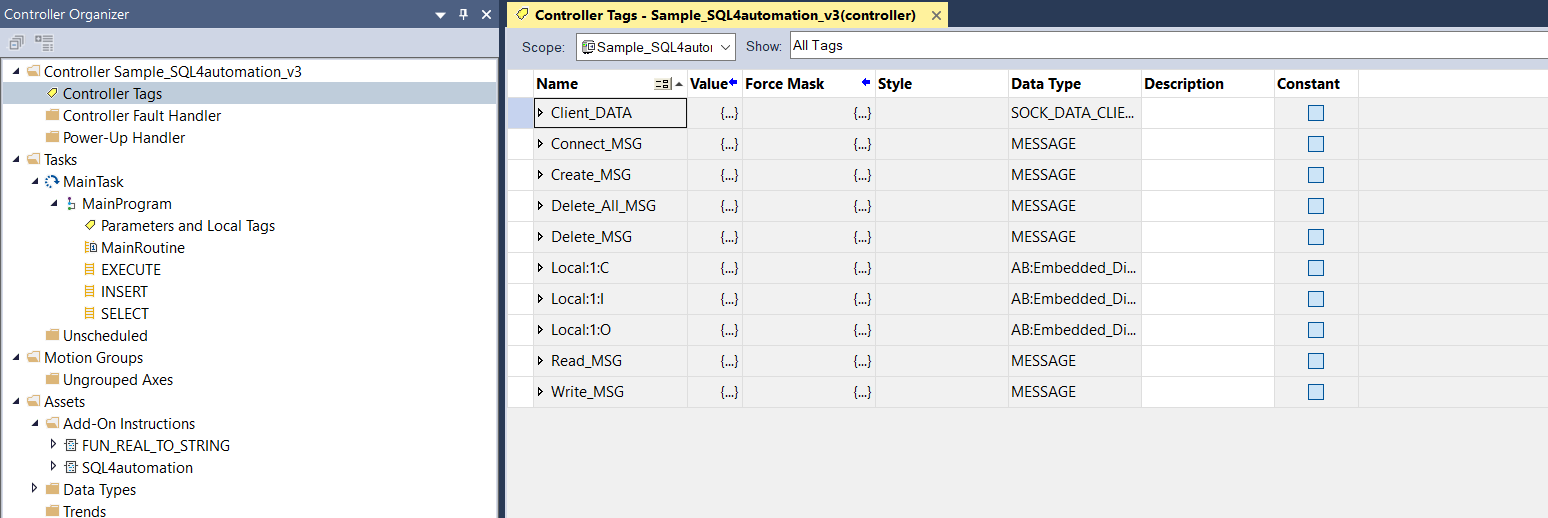

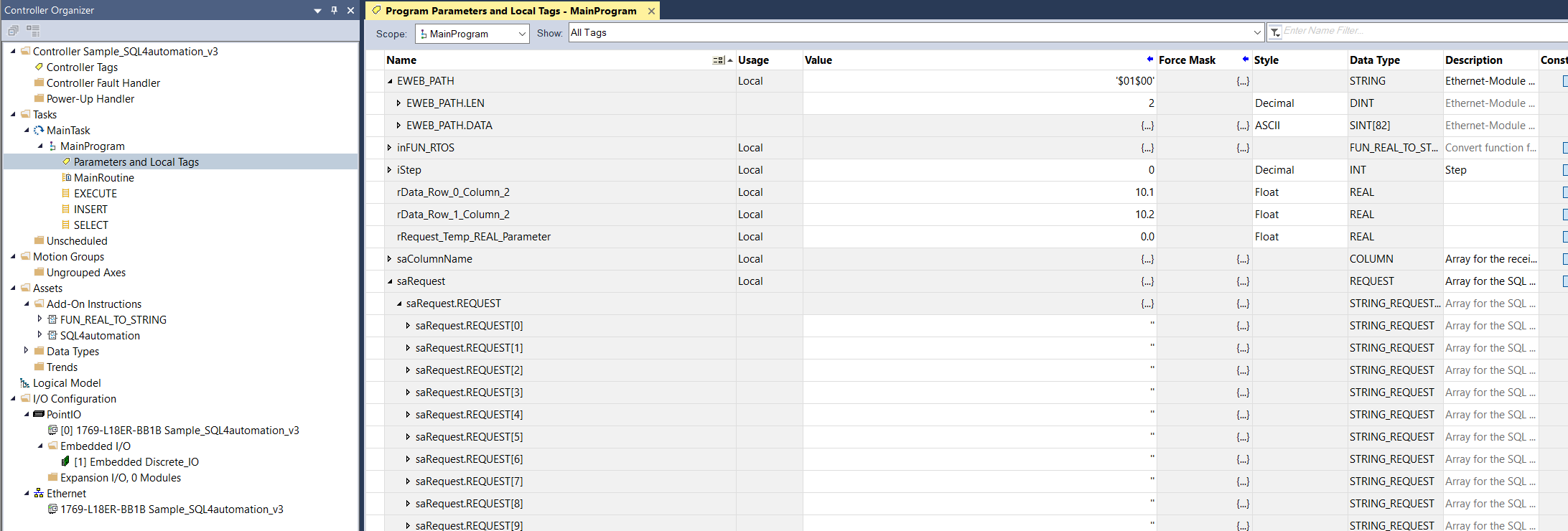

Additionally, the missing tags can be added via menu “Tool – Import – Tags and Comments…” (Sample_S4A_CxxxxxxLogix_xxxxxxx-Controller-Tags and Sample_S4A_CxxxxxLogix_xxxxxxx-MainProgram-Tags).

Add-On (Function Block)

This Add-On enables the connection of the SQL4Automation Connector to a database

www.sql4automation.com

Data Types

Some data types can be adjusted for project-specific purposes. Depending on the size of the data to be read or written, the Array sizes or Data Type sizes are configured here.

STRING – Data Types

STRING_READBUFFER Maximum Characters: 484 // The maximum TCP Read-Buffer is dependent on

the Control system type. STRING_WRITEBUFFER Maximum Characters: 462 // The maximum TCP Write-Buffer is dependent

on the Control system type.

STRING_READBUFFER_COMPLETE Maximum Characters: 5000 // The maximum size of the data to read

(SQL data).

STRING_WRITEBUFFER_COMPLETE Maximum Characters: 1000 // The maximum size of the data to write

(SQL query)

STRING_REQUEST Maximum Characters: 100 // The maximum String-Length in the Request-

Array (per Index)

STRING_VALUE Maximum Characters: 20 // The maximum String-Length in the

TableValue-Array (per Value)

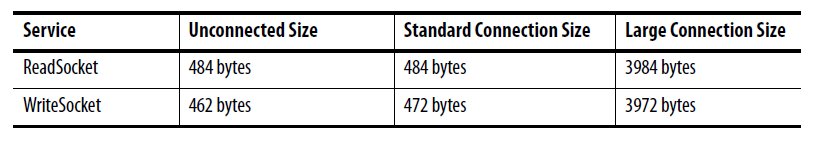

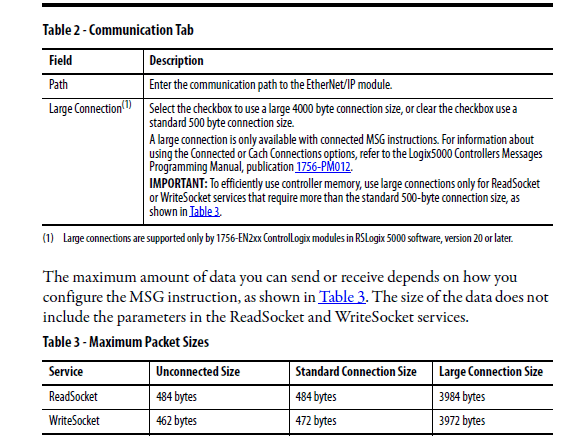

Attention CompactLogix control systems can only communicate with Unconnected connections, whereas ControlLogix control systems can also establish Connected connections, i.e. Standard connections. The table shows the buffer sizes (STRING_READBUFFER, STRING_WRITEBUFFER) of the different connection types.

Large Connection Size are supported only by 1756-EN2xx ControlLogix modules in RSLogix 5000 software, version 20 or later.

From Add-On V2 release (AddOn_SQL4automation_v2.0.0.0.L5X) the partial reading and writing is supported. This also enables the transmission of large amounts of data, even if the TCP buffers are less than to read or write the data.

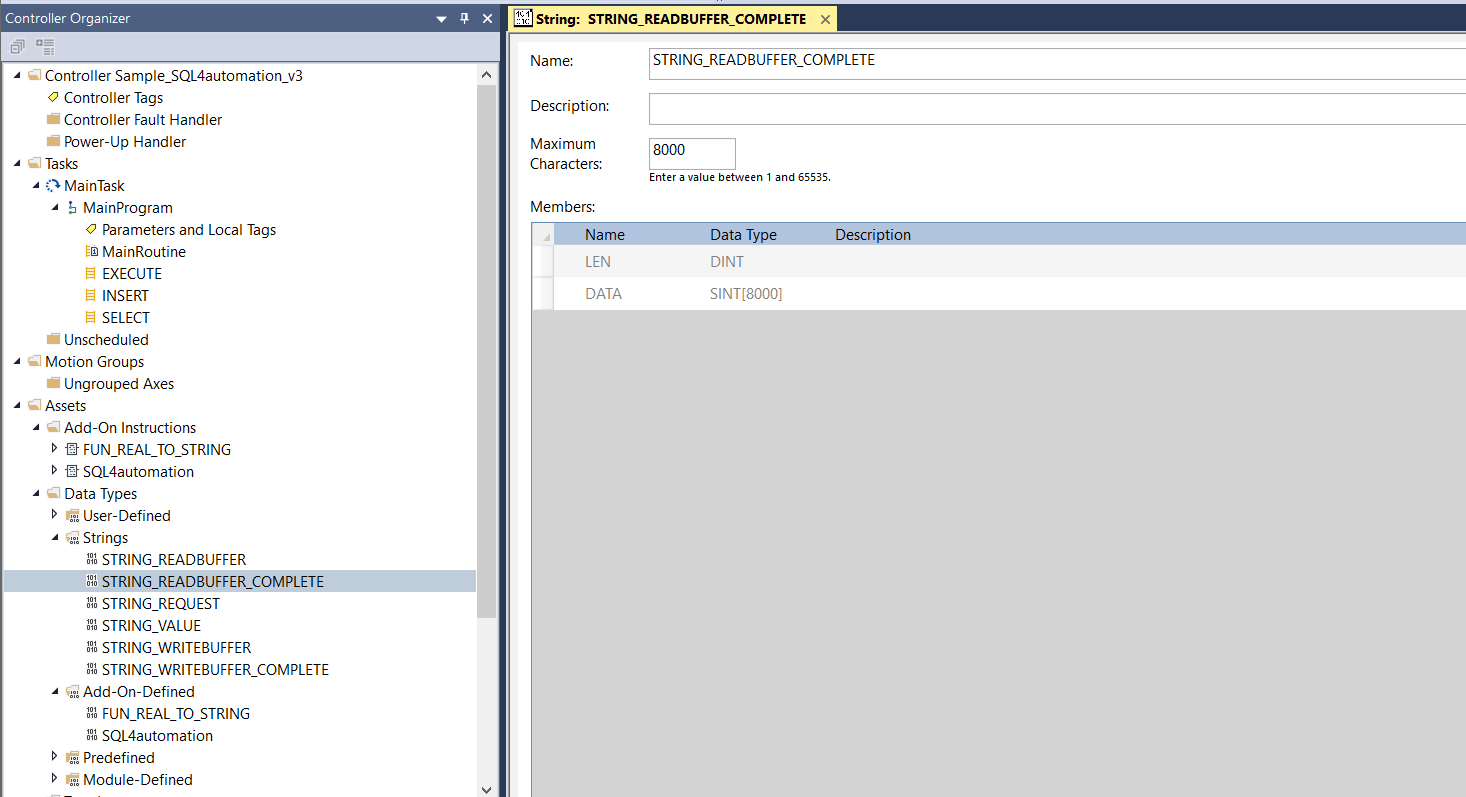

The String-Data Types must be adjusted in the Controller Organizer under Data Types – Configure Strings.

USER DEFINED – Data Types

REQUEST STRING_REQUEST[10] // The Array-Size of the Request-Array (Index)

COLUMN STRING_VALUE[25] // The Array-Size of the TableValue-Array (Number of Columns)

VALUE COLUMN[50] // The Array-Size of the TableValue-Array (Number of Rows)

PARAMETER STRING_VALUE[5] // The Array-Size of the Return Parameter-Array (Index) (Number of return parameter)

Note: By adjusting the size of the Data Types REQUEST, COLUMN, VALUE and PARAMETER, the required memory size can be adjusted to the respective application.

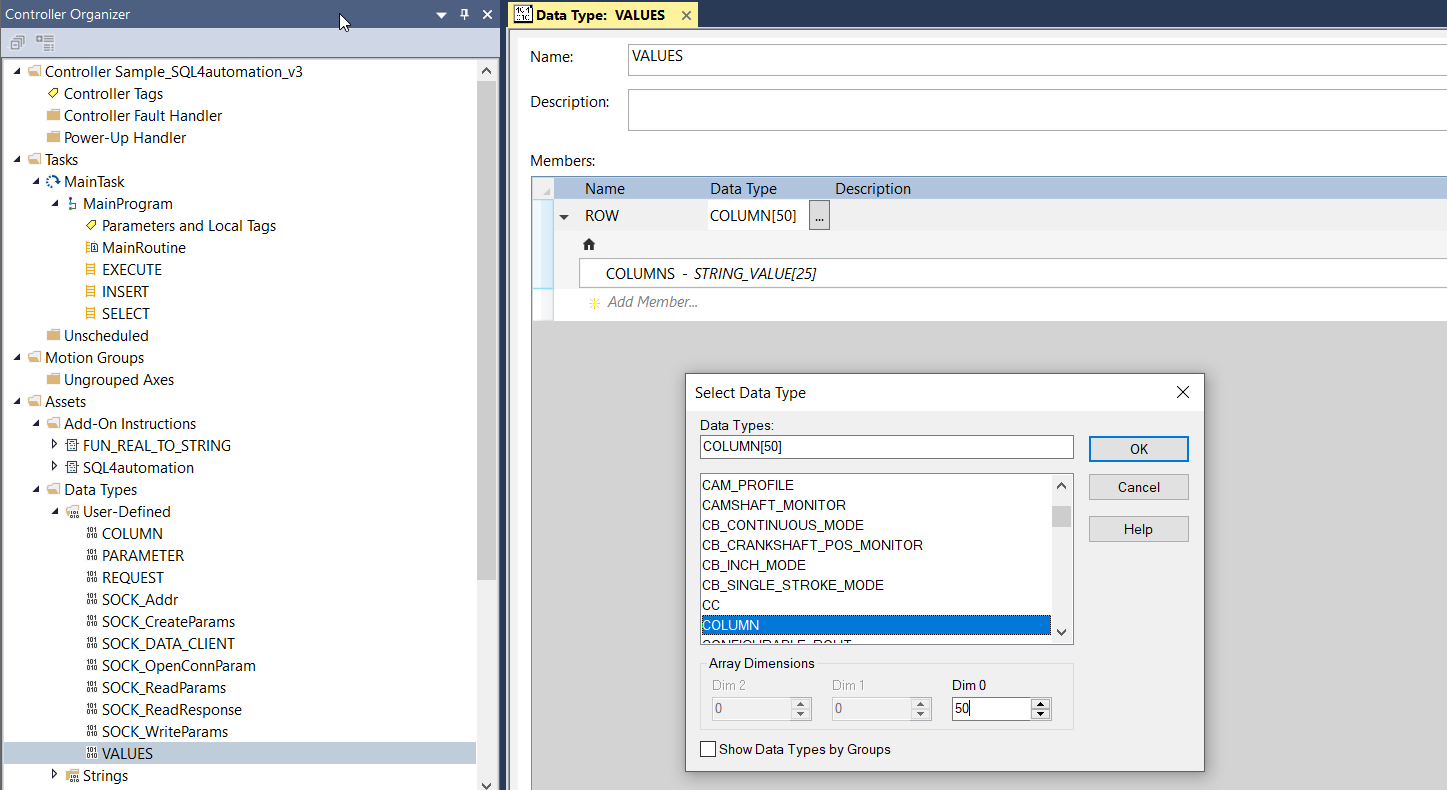

The User-Defined-Data Types must be configured in the Controller Organizer under Data Types – User-

Defined.

Besides the Data Types REQUEST, COLUMN, VALUE and PARAMETER, the following Data Types are required for the Socket communication: SOCK_Addr, SOCK:CreateParams, SOCK_DATA_CLIENT, SOCK_OpenConnParam, SOCK_ReadParams, SOCK_ReadResponse, SOCK_WriteParams. However, these must not be adjusted.

Parameters SQL4automation Function Block

The instance of the SQL4automation Function Block requires the following input and output parameters.

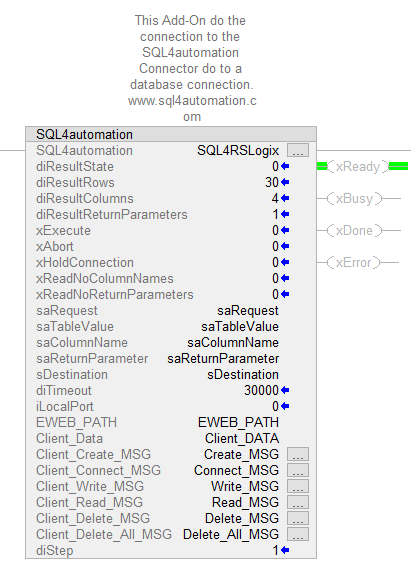

SQL4RSLogix SQL4automation // Instance of the SQL4automation Function Block

INOUT-Parameter

saRequest REQUEST // Request-Array

saTableValue VALUES // TableValue-Array

saColumnName COLUMN // Column names

saReturnParameter PARAMETER // Return parameter

sDestination STRING // Dest. of the Connector. E.g. ‘192.168.1.202 ?port=11001’

EWEB_PATH STRING // Ethernet-Modul Slot. E.g. Backplane 1, Slot 3 = ‘$01$03‘

Client_DATA SOCK_DATA_CLIENT // Manages the Socket-Data

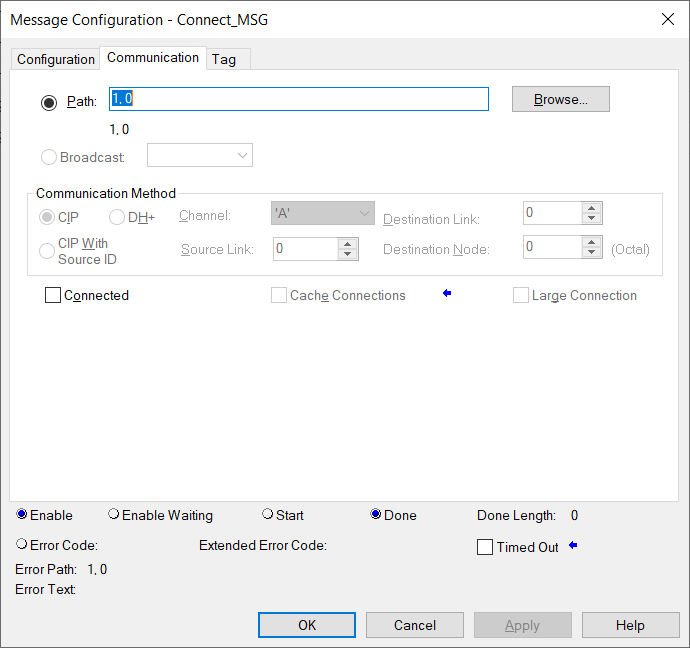

Connect_MSG MESSAGE // MESSAGE Function: Connect Socket

Create_MSG MESSAGE // MESSAGE Function: Create Socket

Delete_All_MSG MESSAGE // MESSAGE Function: Delete all Sockets Delete_MSG MESSAGE // MESSAGE Function: Delete Socket Read_MSG MESSAGE // MESSAGE Function: Read from Socket Write_MSG MESSAGE // MESSAGE Function: Write to Socket

INPUT-Parameter

xExecute BOOL; // Start Database request

xAbort BOOL; // Reset

xHoldConnection BOOL; // Holds the Socket connection open after a Database request

xReadNoColumnNames BOOL; // Reads no coulmn names xReadNoReturnParameters BOOL; // Reads no return parameters. (SQL4automation Connector < V4 -> TRUE)

iLocalPort INT // Port number of the Control system. 0=default

diTimeout DINT // Timeout of a request [ms]

OUTPUT-Parameter

xReady BOOL // Ready for Database request

xBusy BOOL // Database request in process

xDone BOOL // Database request completed

xError BOOL // Database request resulted in an Error

diResultState DINT // Status Database request / Error number

diResultRows DINT // Number of returned rows from the Database request

diResultColumns DINT // Number of returned columns from the Database request

diStep DINT // Internal Step

Handshake

The handshake is conducted in accordance with the handshake of the StandardProtocol. The StandardProtocol is described under 9.1 Standard Protocol.

Error Codes Return-Value

The variable “diResultState” describes the error.

Error Number	Error Description
1	Unknown SQL Command
2	Request returns more datasets than defined by gc_diMaxRows, modify request or increase gc_diMaxRows
3	Request returns more columns than defined by gc_diMaxColumns, modify request or increase gc_diMaxColumns
4	Request returns more data than the defined buffer size. Modify request or increase STRING_READBUFFER_COMPLETE.
5	Request returns minimal one value that is bigger than defined by MaxStringLength, modify request or increase MaxStringLength
10	Internal Connector error
11	Internal Connector error, cannot open database
22	No target address defined for Connector / sDestination=’’
28	Request string is empty / saRequest.REQUEST[0]=''
40	Error during creation of socket. No connection to SQL4automation-Connector established. Turn off Firewall.
41	Error during connection to the SQL4automation-Connector. Turn off Firewall.
50	Sending the complete request string has failed. Please check your connection or the TCP buffer of your system.
51	Request string is greater than the send buffer. Increase send buffer STRING_WRITEBUFFER_COMPLETE.
61	Error during data reading from the SQL4automation-Connector. Possible cause, too much data.
62	Error during data reading from the SQL4automation-Connector. Increase STRING_READBUFFER_COMPLETE. Please update the SQL4automation Connector (from V3.4.1.0 -> new error number: 4)
71	Error during closing the connection to the SQL4automation-Connector
99	Timeout
>100	Error numbers of the ODBC database connection (some known error numbers are attached) / syntax error
40002	General error during SQL request, request string is invalid

Sample Project

As a sample project, a project was created which is completely executable. There are four variations. One example is for a ControlLogix, the other one for a CompactLogix control system. Both versions are available in the programming language Ladder and Stuctured Text.

The sample projects are devised for the controller 1756-L63 ControlLogix5563 and for a 1769-L18ER-BB1B CompactLogix5318ERM-BB1B. However, these sample projects can be easily adapted to other controller types by simply changing the controller. For a ControlLogix, use the ControlLogix example, for a CompactLogix, use the CompactLogix example.

The four sample projects are named:

Sample_S4A_CompactLogix_Ladder.ACD Sample_S4A_CompactLogix_ST.ACD

Sample_S4A_ControlLogix_Ladder.ACD Sample_S4A_ControlLogix_ST.ACD

Note: When executing the database request, the test license has to be activated by the „S4A Config“ tool and a Link must be configured (with port number e.g. 11001) to the test database “S4A_Test_DB.mdb” or “SQLite_Test_DB.db” from the "Sample_Database" directory. If a stored procedure is to be executed, an MS SQL Server database must be available. With the SQL script „MSSQL_TestDB_script.sql“ the table incl. data and stored procedure can be created. How to configure the connection to the test database is described under 4.1.2 Setting up the connection to the test database.

There is an example for a SELECT, INSERT and an EXECUTE (stored procedure) query.

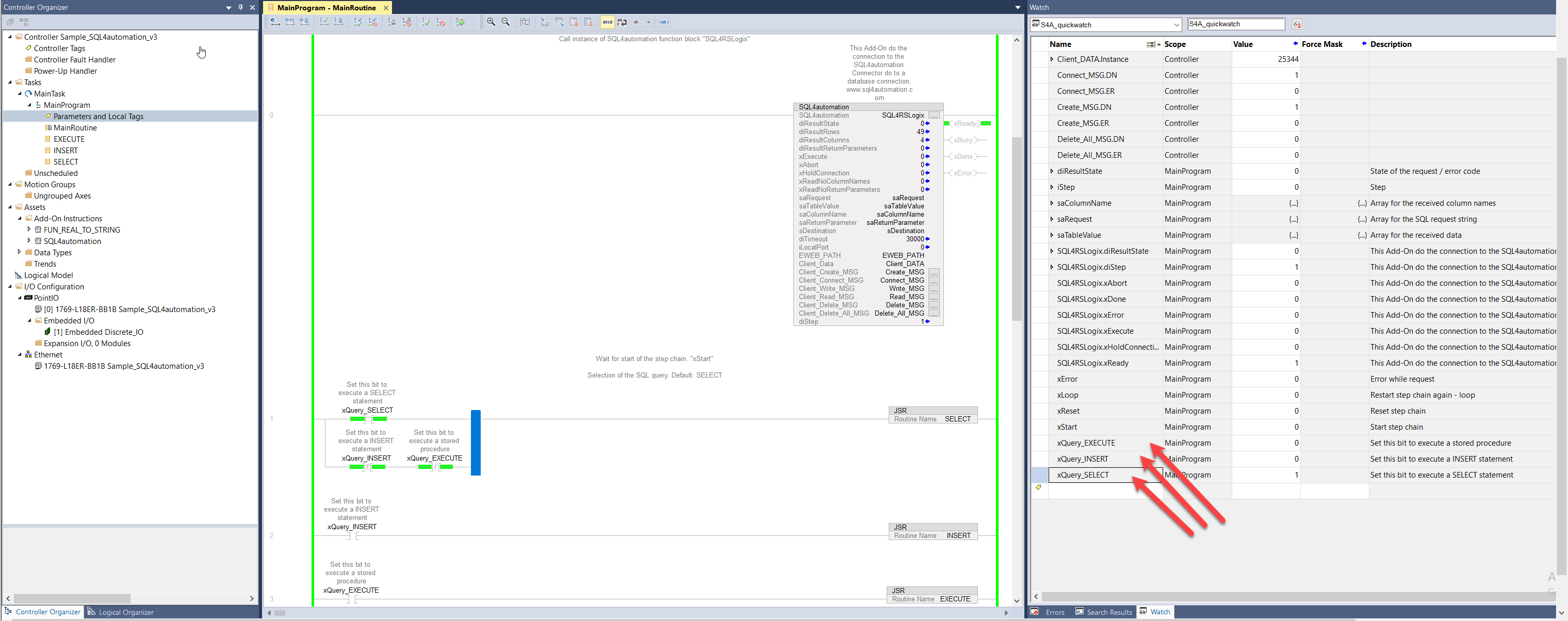

The call of the corresponding subprogram is controlled by xQuery_SELECT, xQuery_INSERT and xQuery_EXECUTE.

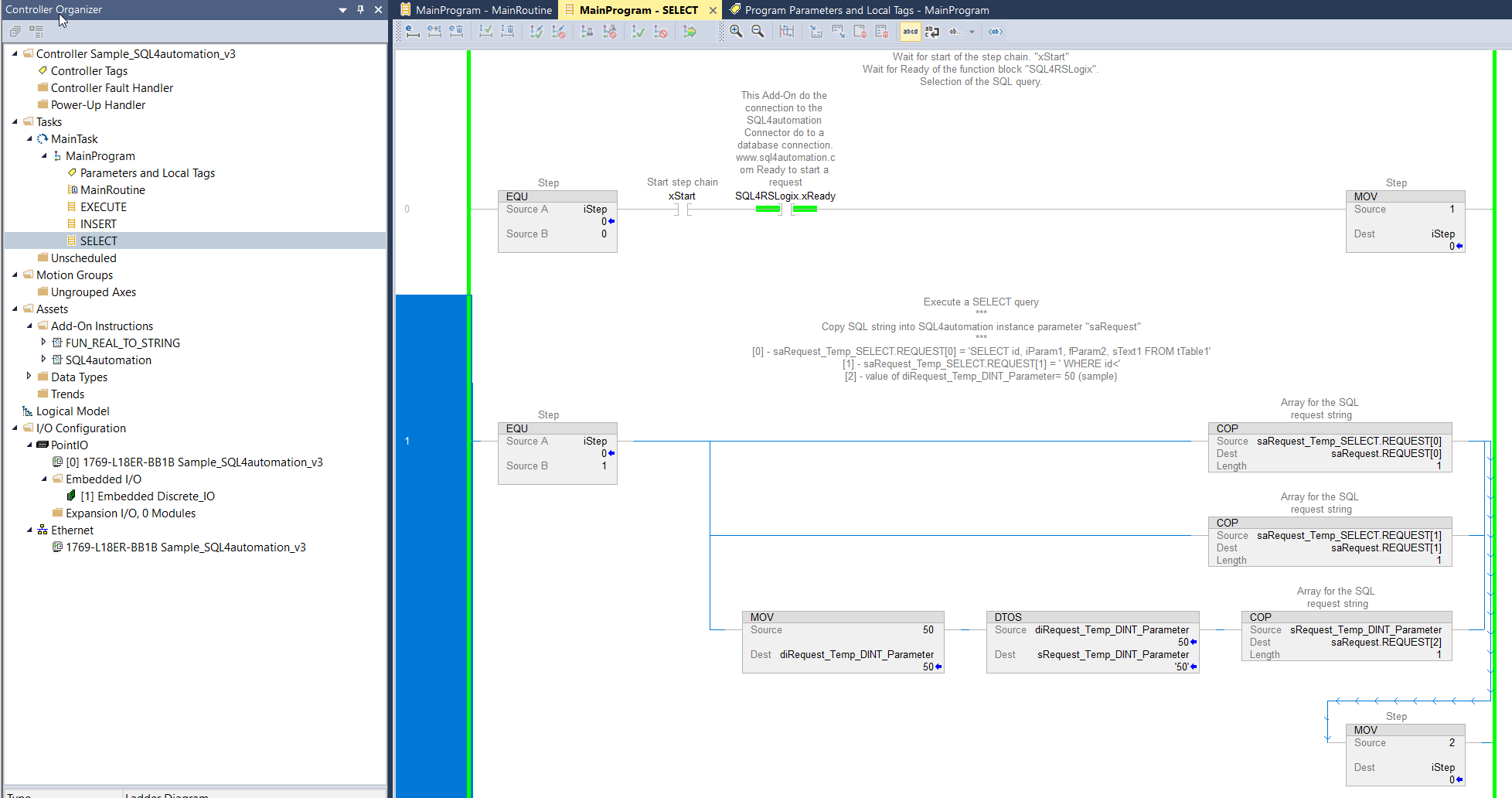

A step chain is programmed in the corresponding subroutine. The SQL command is also assembled there. The SQL command is passed to the function block as STRING. Therefore, INTEGER or REAL variables must be converted into STRING variables if they are to be included in the SQL command. For the REAL-STRING conversion there is a special function that can be used. This is called FUN_REAL_TO_STRING and can be found under the add-ons.

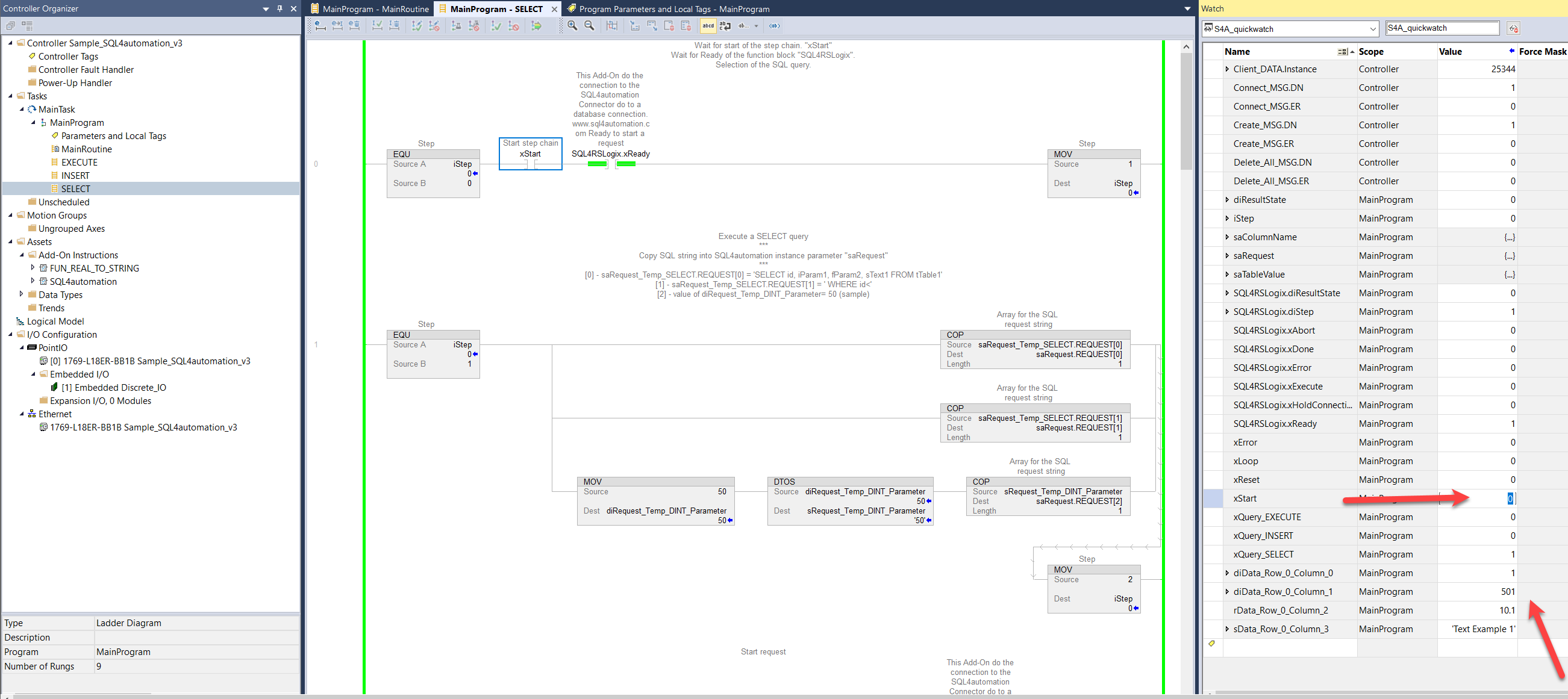

By setting the variable xStart to 1, an automated execution of a database request can be performed. Reset xStart to 0 after the the request is done.

By setting the variable xLoop also to 1, the database query is carried out continuously.

If the query is successful, the read data is displayed.

All queries are logged in the "S4A Debugger" tool.
